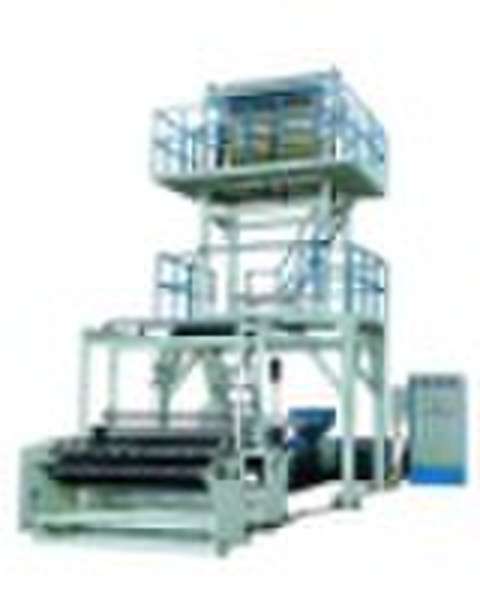

PE Film Wide blowing Extruder

PE Film Wide blowing Extruder/LDPE film blowing machine/blown film extrusion machine SJ90X32-FMS2200, SJ65X28-FMS1600, SJ65X28-FMS1400 PEWide blown film machine is specially designed for large package and wide film.It is suitable for blowing the plastic film as high density polyethylene (HDPE), low density polyethylene(LDPE) and linear low density polyethylene(LLDPE), which is widely used for packing fruit, foot, garment, textile, daily-use articles and industrial products etc. Characteristics:Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance. ,Scientifically designed, this machine set has such advantages as increasing production capacity, saving energy, labor and workshop area, etc. this picture is only for reference purpose, the final machinery is subject to customers' need Technical parameters: Specification ModelSJ90×30-FMS2200SJ65×28-FMS1600SJ65×28-FMS1400Screw Diameter(mm)Ø90Ø65Ø65Screw Ratio(L/D)30:128:128:1Heater Capacity(kw)301515Main Motor Power(kw)453730Temperature Controller Panel(zone)866Take-up Roller Width(mm)220016001400Take-up Power(kw)2.21.51.5Die Diameter(mm)LD (Ø)500LD(Ø)400/HD(Ø)150-180LD(Ø)300 /HD(Ø)120-150 Air Blower Power(kw)5.544Film Width(mm)1000-2000700-1500600-1300FilmThickness(mm)0.02-0.100.02-0.100.02-0.10Extrusion Output(kg/h)50-12030-9030-90Assembling Dimension(L×W×Hm)9×4×8.57×3.5×6.57×3×6All these technical parameters can be varied with customers’ request. optional equipment: rotary die, autoloader, corona treament, air-compressor
