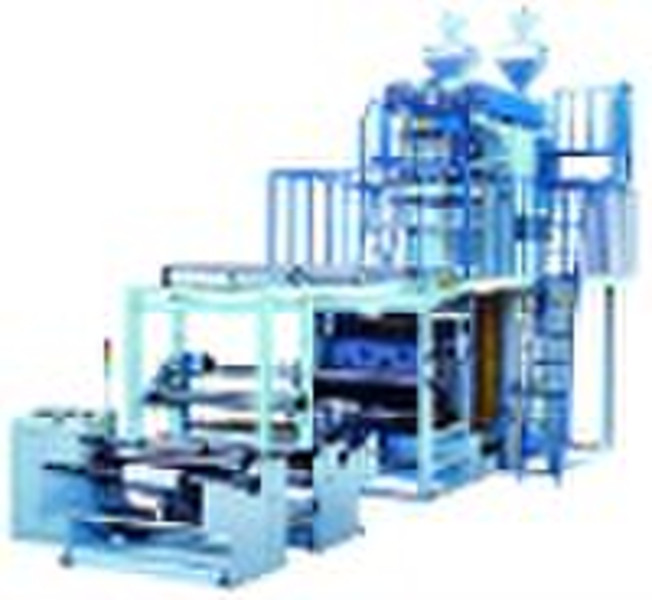

PP 2 Layer plastic film co-extrusion machine

PP 2 Layer Co-extrusion Rotary Die Blown Film Eextruder PlasicFilm Blowing Machine MODEL: SJ55×28×2-FMX1000-B SJ45×28×2-FMX800-B SJ*2-FMX-B,the 2-layer Rotary die Co-Extrusion water-cooling blown film machine is manufactured and delicately designed by ourselves. The characteristics of the machine are compact structure,simple operation and high automation.The plastic film is characterized by high transparency,good toughness and barrier properties,heat-sealing and low-temperature resistance. Through changing the different combination of materials:PP-PP,PP-LLDPE,PP-mLLDPE,PE+LLDPE,the film could meet various kinds of packing requests including the film for the package of luxury merchandise. PP 2 Layer plastic film co-extrusion machine (with double back to back rewinder) Technical parameters: Specification Model SJ55×28×2 -FMX1000-B SJ45×28×2 -FMX800-B Screw Diameter (mm) φ55×2 φ45×2 Screw Ratio (L/D) 28:1 28:1 Driving Motor Power (kw) 18.5kW×2 11kW×2 Take-up roller Width (mm) 1000 800 Take-up Power (kw) 1.5 0.75 Take-up Speed (max.m/min) 1040 1060 Die Diameter (mm) 300400 250 Air Blower Power (kw) 3/4 1/2 Rotary Angle 360° 360° Effective Film Width (mm) 300-900 160-650 Thickness of Film (mm) 0.020.10 0.020.10 Extrusion Output (kg/h) 20-80 10-50 Total Power (kw) 50 35 Assembling Diamension (LxWxH m) 5.5×3.5×4.5 4.5×2.5×4.2 For furterh details, just contact us!
